SPECIAL ORDER ITEM — This lighting system is special-order and will be brought in specifically for you once your order is placed. Additional processing time may be required.

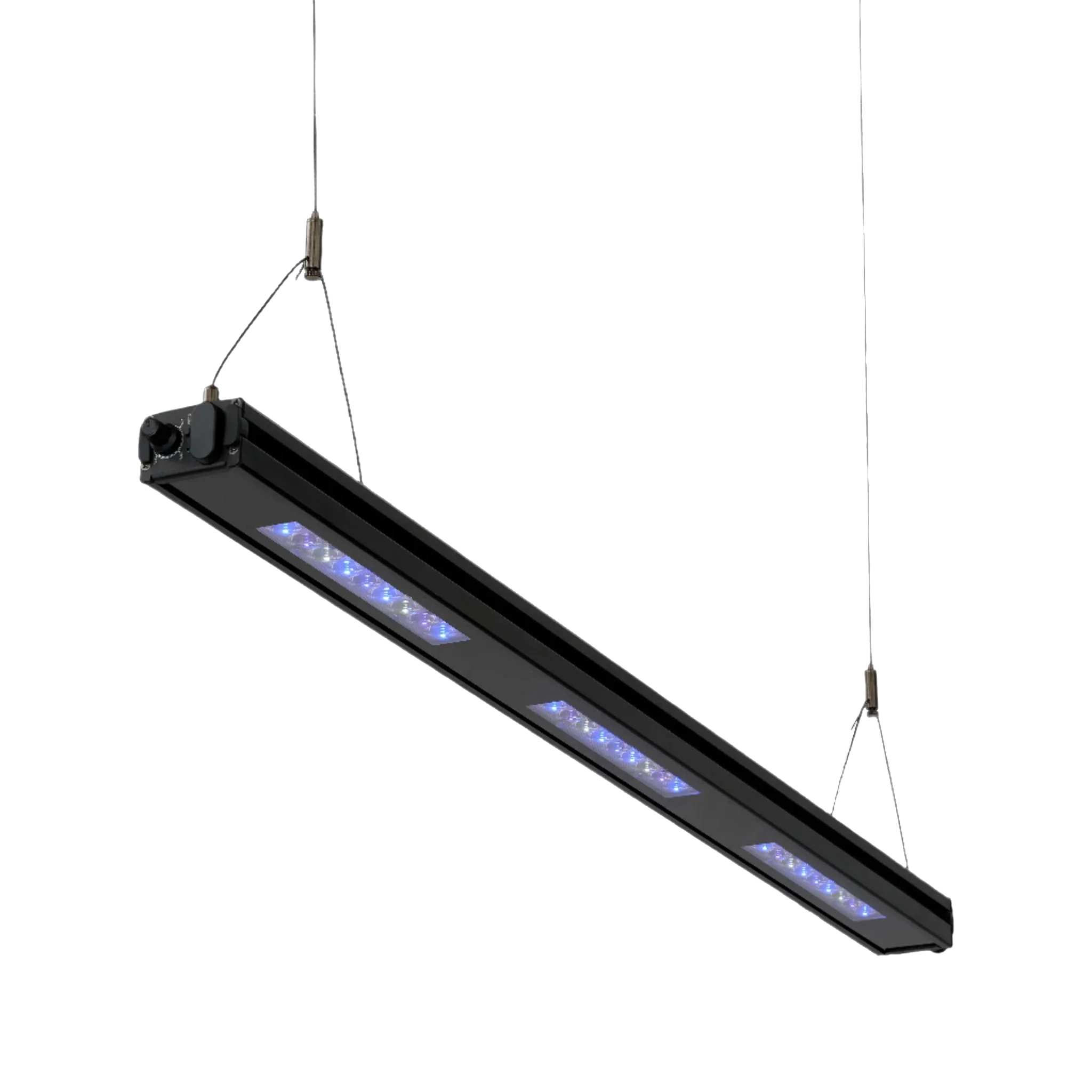

Meridian Edge 35

Specifications:

Coverage Area: 48" x 6–8" (120cm x 15–20cm)
Recommended Mounting Height: 14" (35cm) above waterline with OHM Balance Optics
Max Power Draw (App): 90 watts
Max Power Draw (Manual): 67.5 watts
Case Dimensions (LxWxH): 34.5" (87.65cm) x 2" (5cm) x 1.35" (3.43cm)
Weight: 3.35 lbs (1.52kg)
Total Length (including plug & manual controller): 36.75" (93.35cm)
Total Case Height (including bolts): 1.53" (3.88cm)
Warranty: 2 years on light, 1 year on power supply

Experience the Next Level in Reef Lighting

Introducing the ReefBreeders Meridian Edge:

The Meridian Edge Bars are designed specifically to grow vibrant, thriving coral. Engineered for serious reef enthusiasts, the Edge Bars deliver peak performance, exceptional flexibility, and precise control—enhancing coral health and growth like never before.

On their own, each Edge Bar provides 6 to 8 inches of powerful, targeted coverage at a 10–14 inch mounting height. When combined with a Meridian fixture, they extend total front-to-back coverage from 24 inches to 30 inches, ensuring even the largest coral colonies receive optimal light from all angles.

Choose the Perfect Spectrum

Royal Ice

UV/Blue Hybrid

Reefer 14K

Freshwater

Control Your Lighting Your Way

Manual Control: Simple one-channel control with 75% max output and built-in 8, 10, or 12-hour timers.
App & Manual Control: Unlock full 100% power with dual-channel control through the ReefBreeders app. Bluetooth support is coming soon via a software update.

Every manual Edge Bar can be upgraded to full app control with a quick and easy hardware swap, so you’re never locked into one option.

Ocular Hollow Matrix (OHM) Optics

The Ocular Hollow Matrix (OHM) optics focus light exactly where corals need it, penetrating deeper into the tank than traditional LED bars. This concentrated output provides the intensity required for serious coral growth, even in tanks 30 inches or deeper.

Optional Edge Articulating Mounts allow precise angling, letting you direct light exactly where it’s needed. This multi-angle illumination helps corals develop more evenly and reduces dark spots in complex aquascapes.

Designed with a durable aluminum body and a sleek black finish, the Edge Bars integrate seamlessly into any reef setup. With the optional Octo Cable, you can connect multiple bars to a single power source for a cleaner, more efficient installation.

The Meridian Edge Bars set a new standard in reef lighting—combining power, precision, and adaptability in a professional-grade package. Whether you’re fine-tuning the spectrum for specific coral species or expanding your system with app-controlled customization, the Edge series grows alongside your reef.

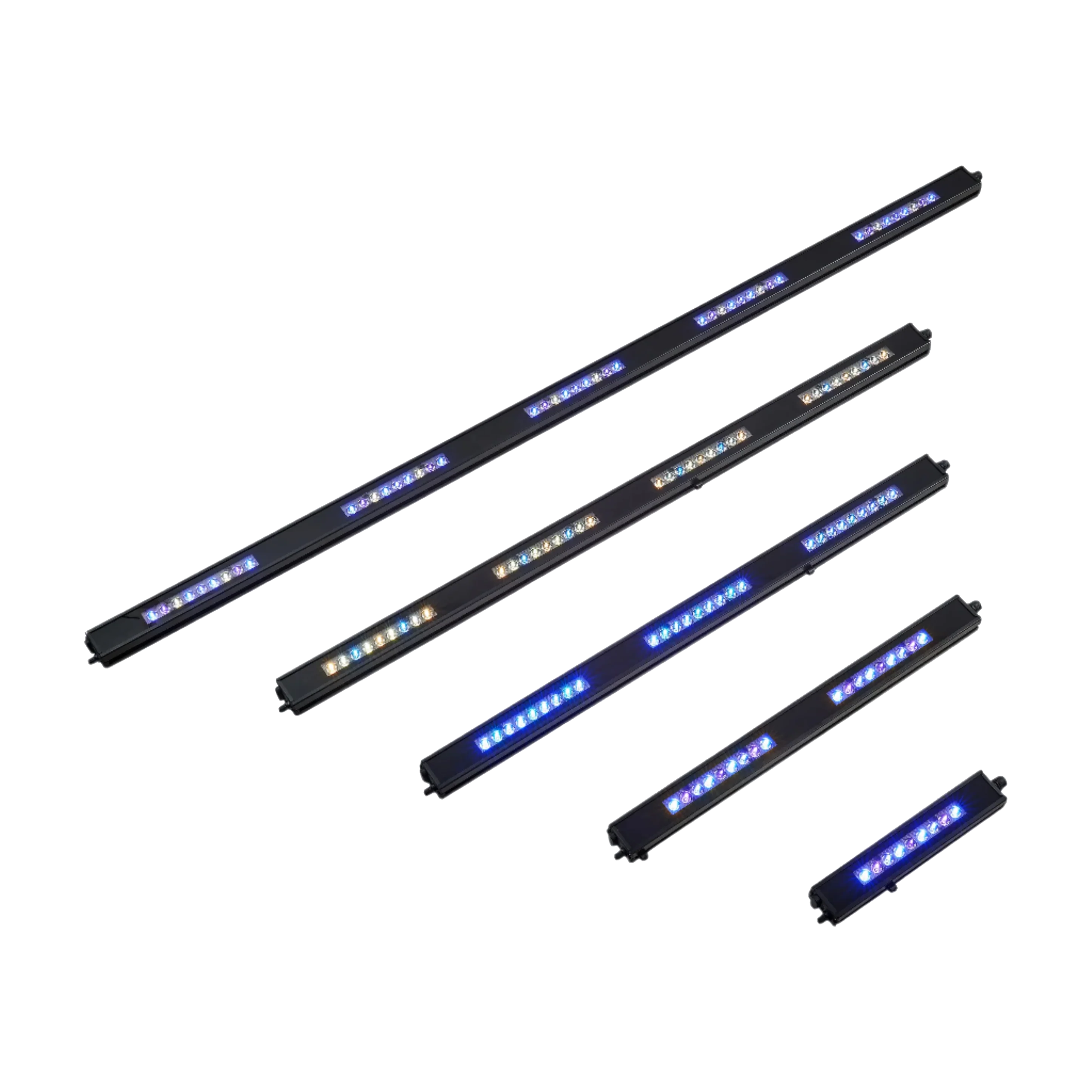

Edge Series Wattage Overview

Light Model	Length	Max Wattage

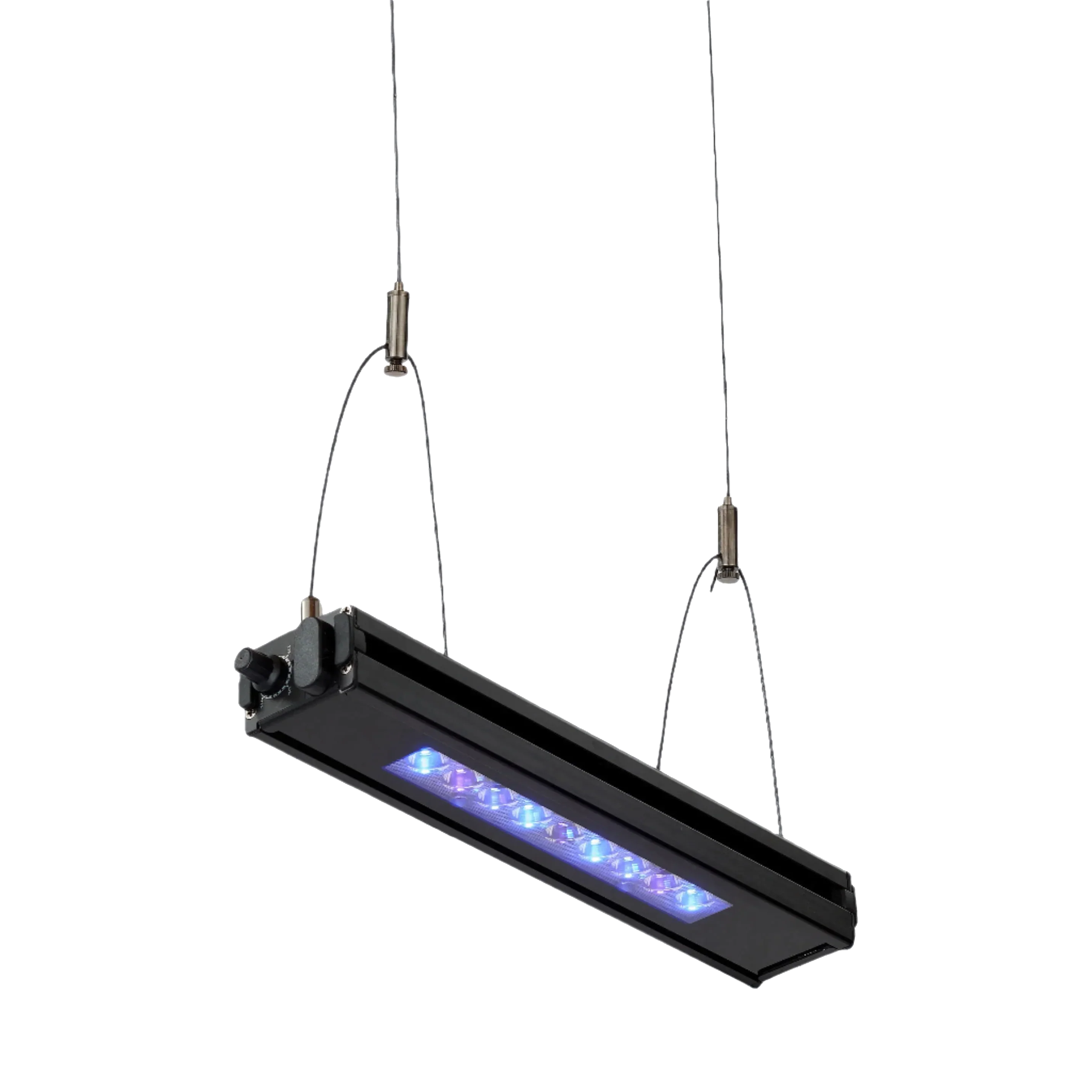

Edge 12	12" / 30cm	30 watts

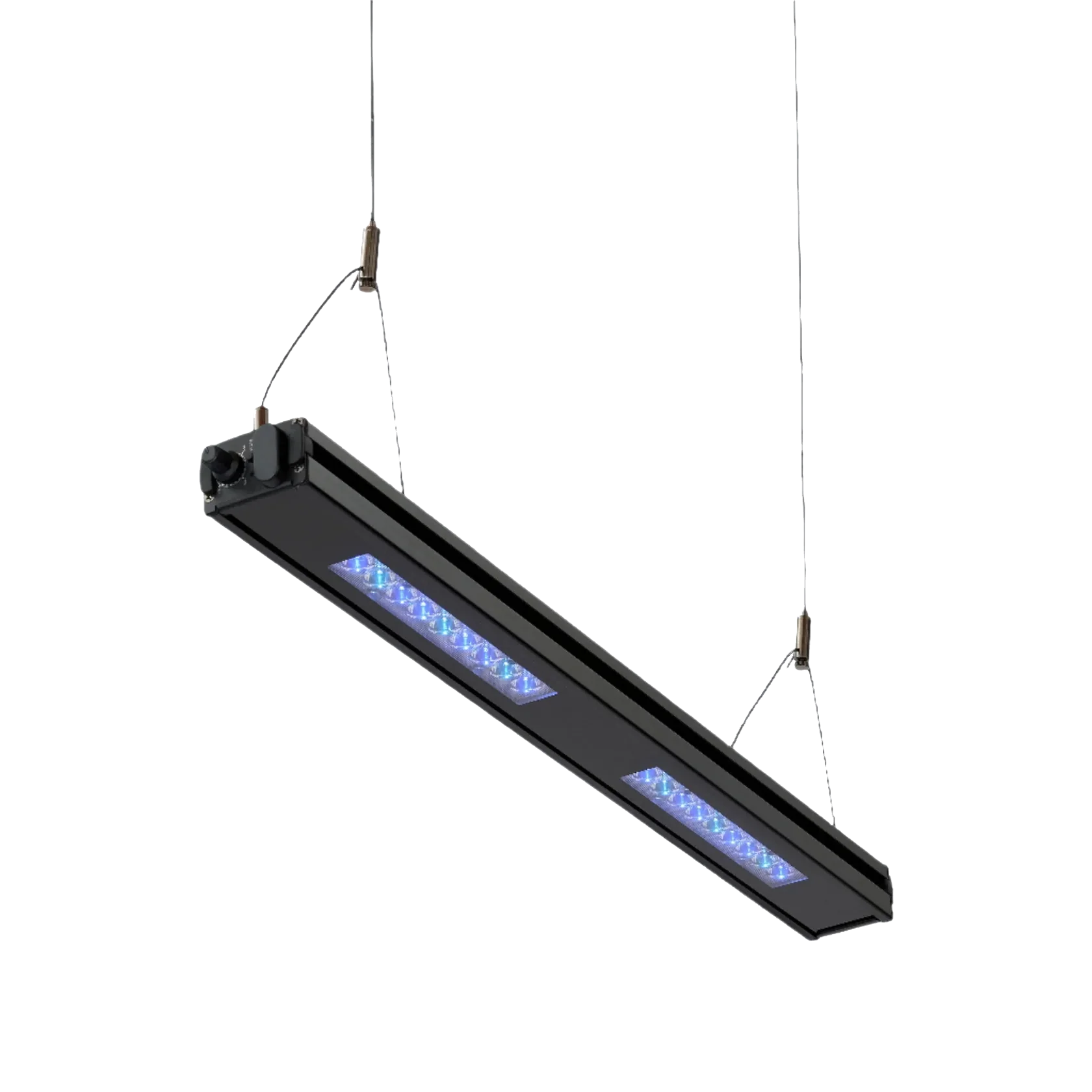

Edge 24	24" / 60cm	60 watts
Edge 35	35" / 90cm	90 watts

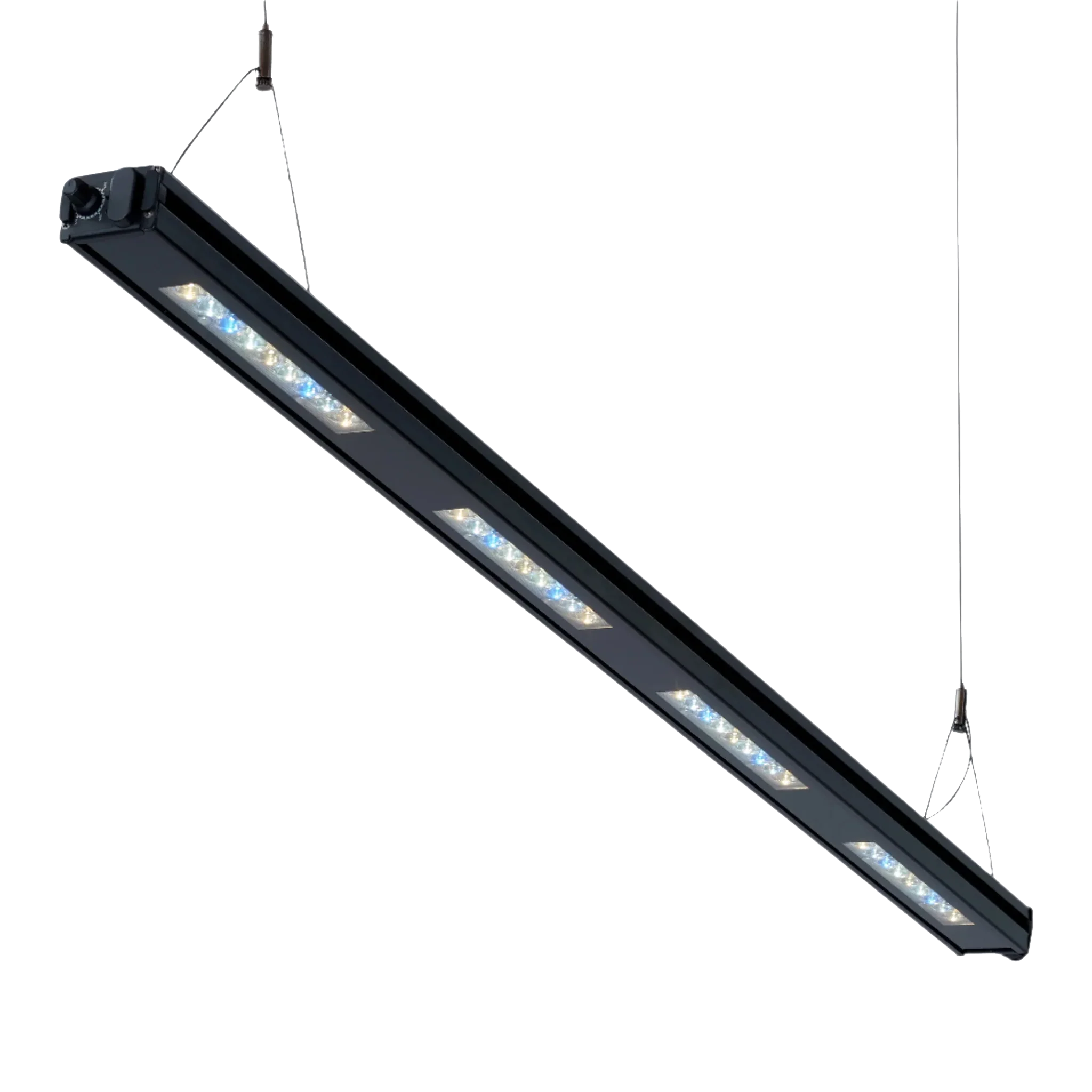

Edge 45	45" / 115cm	120 watts

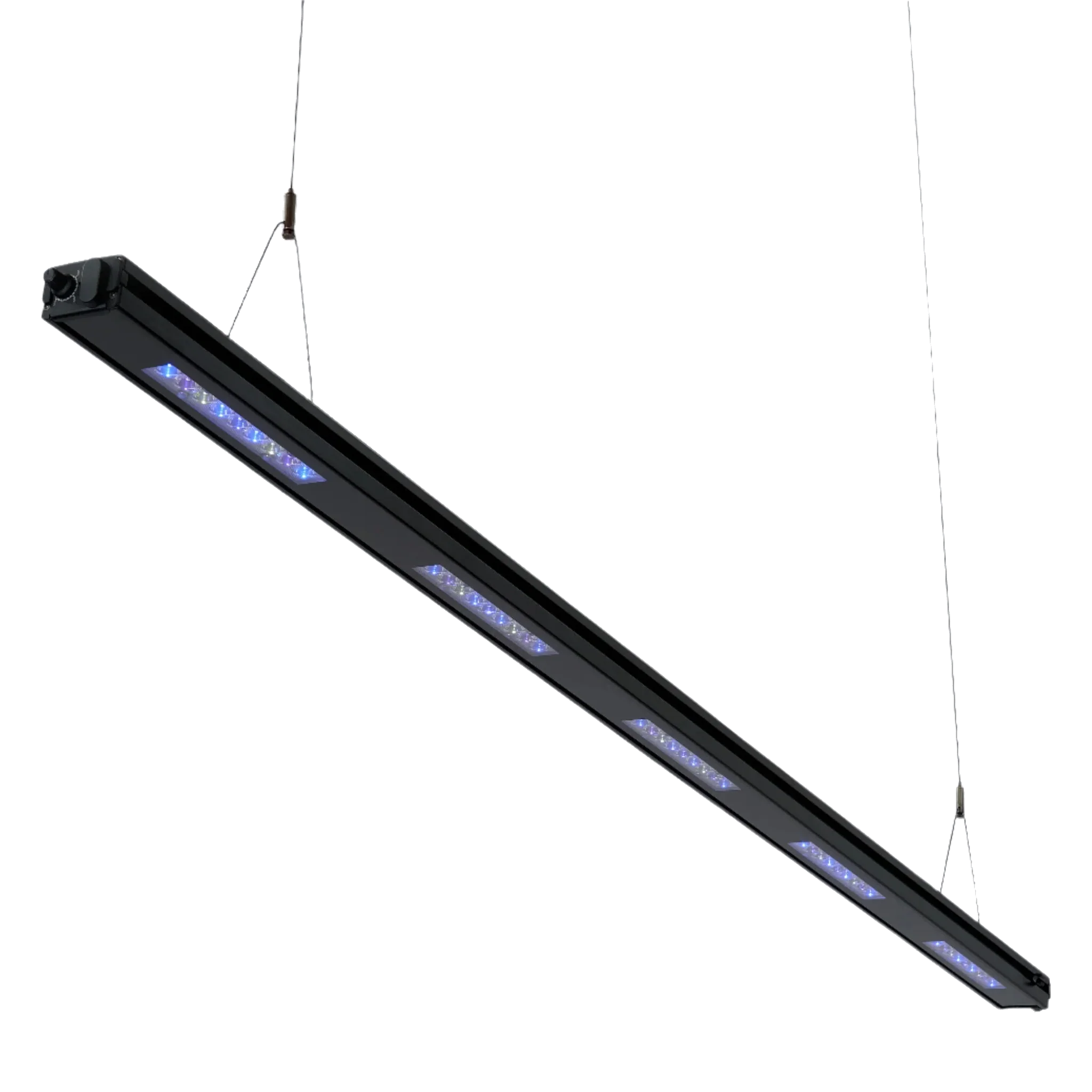

Edge 63	63" / 160cm	150 watts

Specifications Continued:

1 power input port
Adjustable M6x1.0mm bolts on top of case (4 included)
Front and rear tracks for mounting to Meridian (Edge Articulating Mounts required)
Built-in Manual Controller
2.4GHz WiFi control with Bluetooth available via the ReefBreeders app

Lights

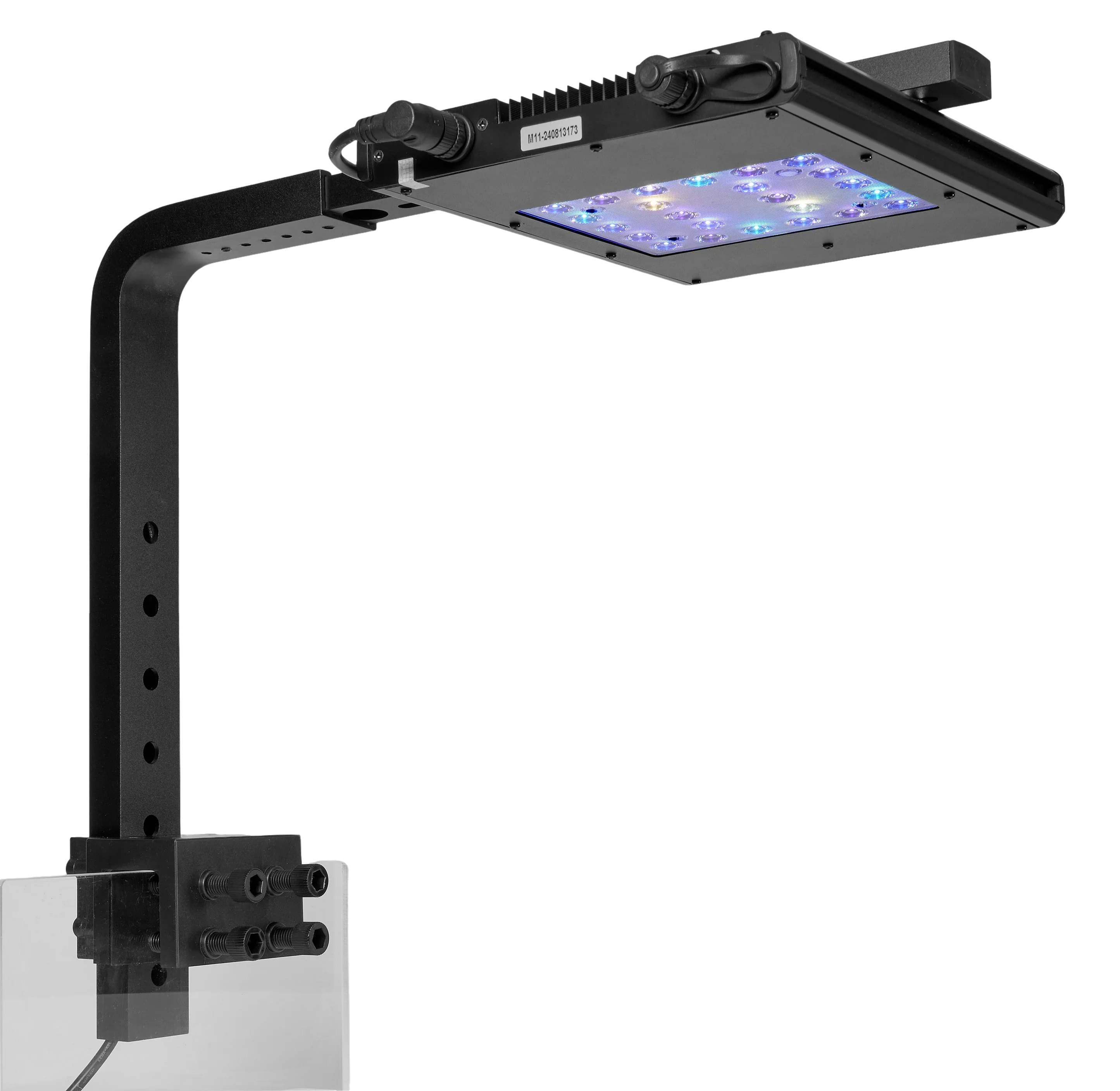

Meridian BOT Mount

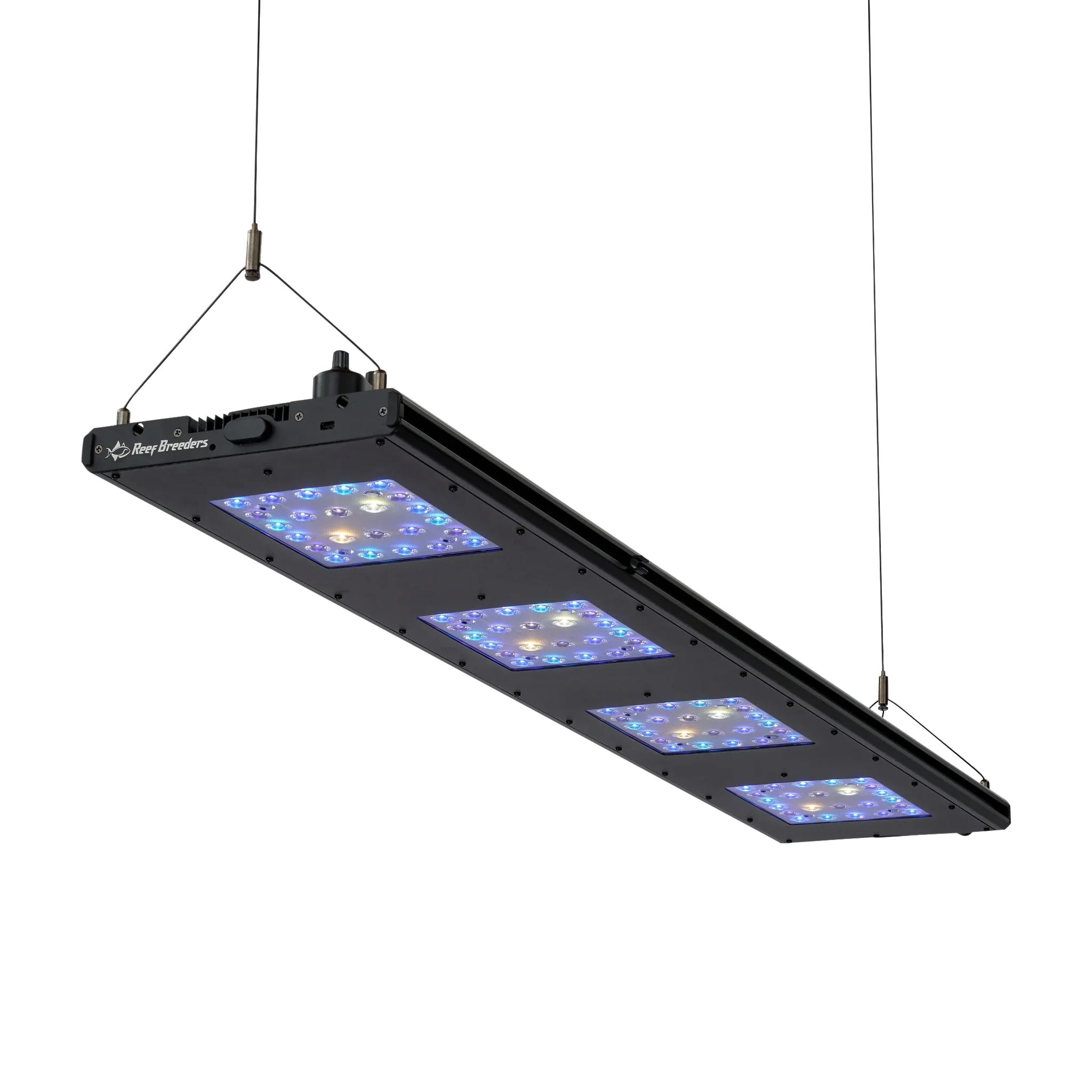

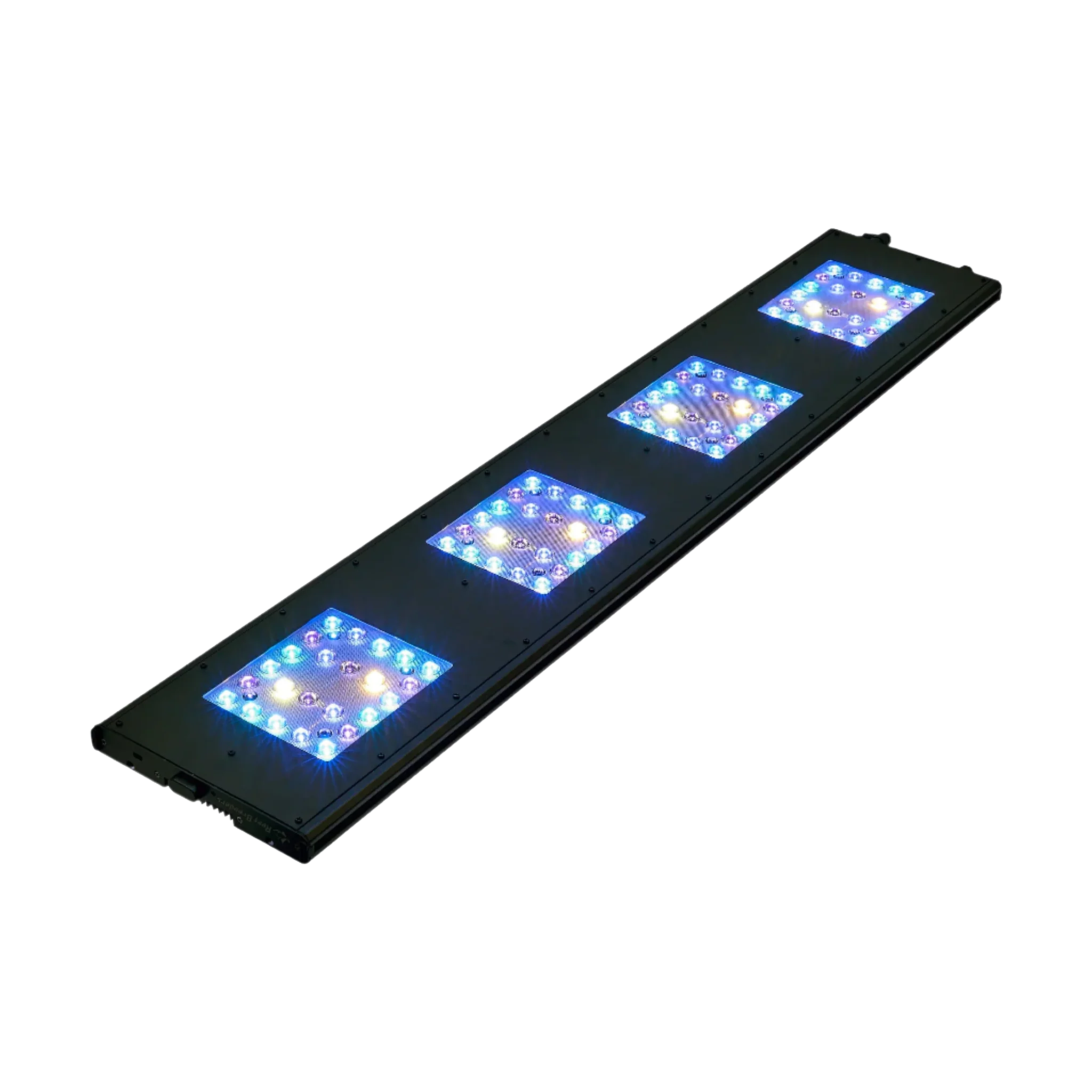

Meridian 45

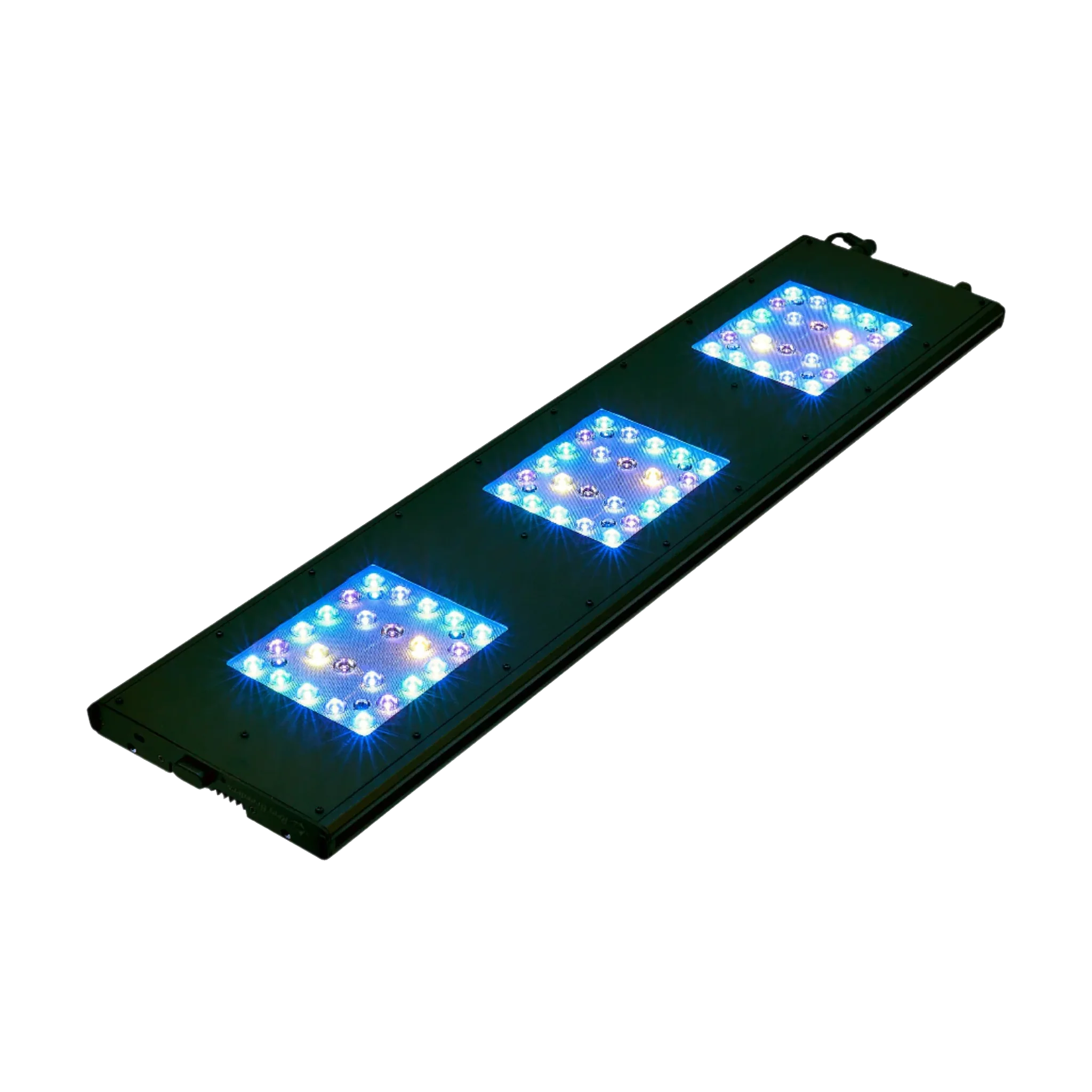

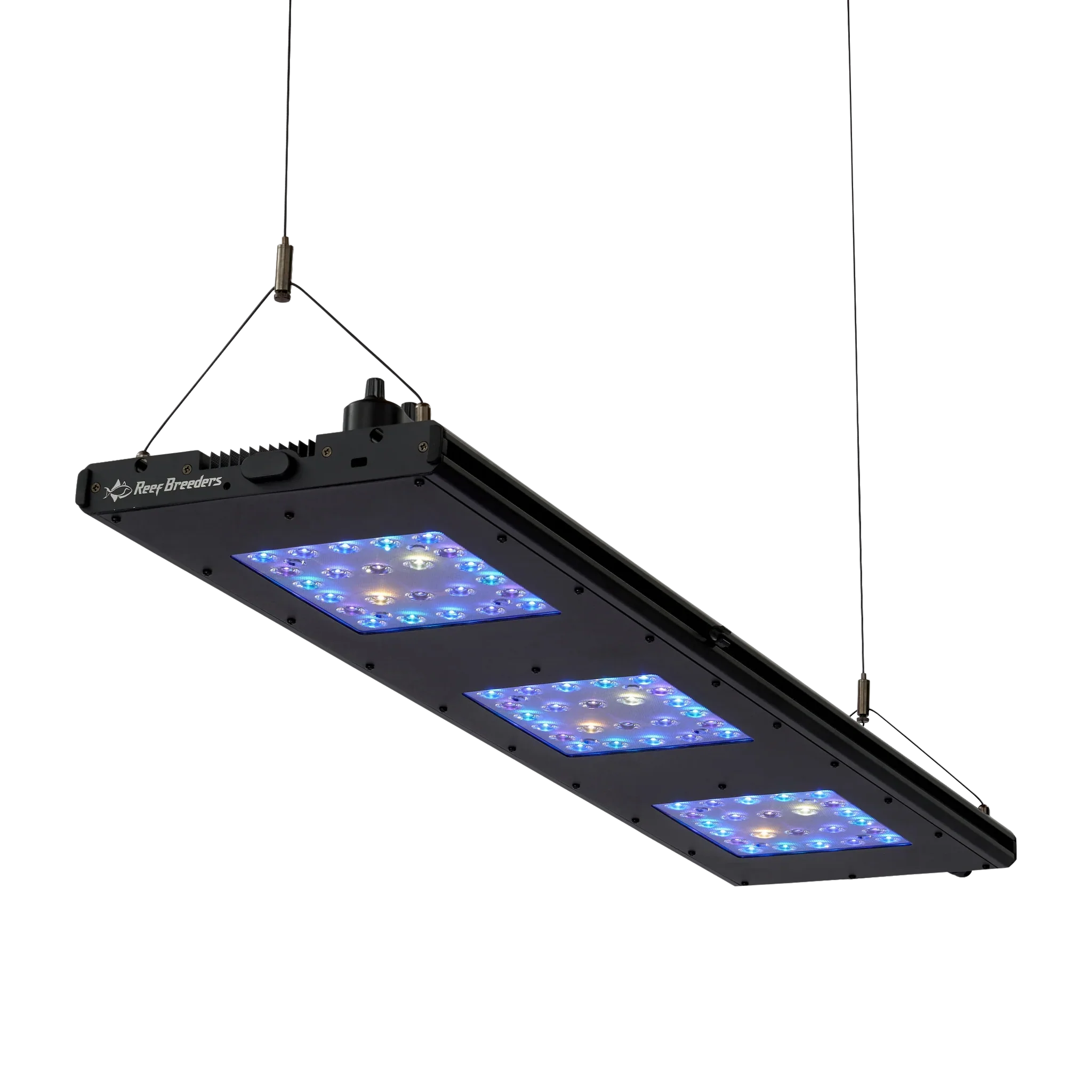

Meridian 35

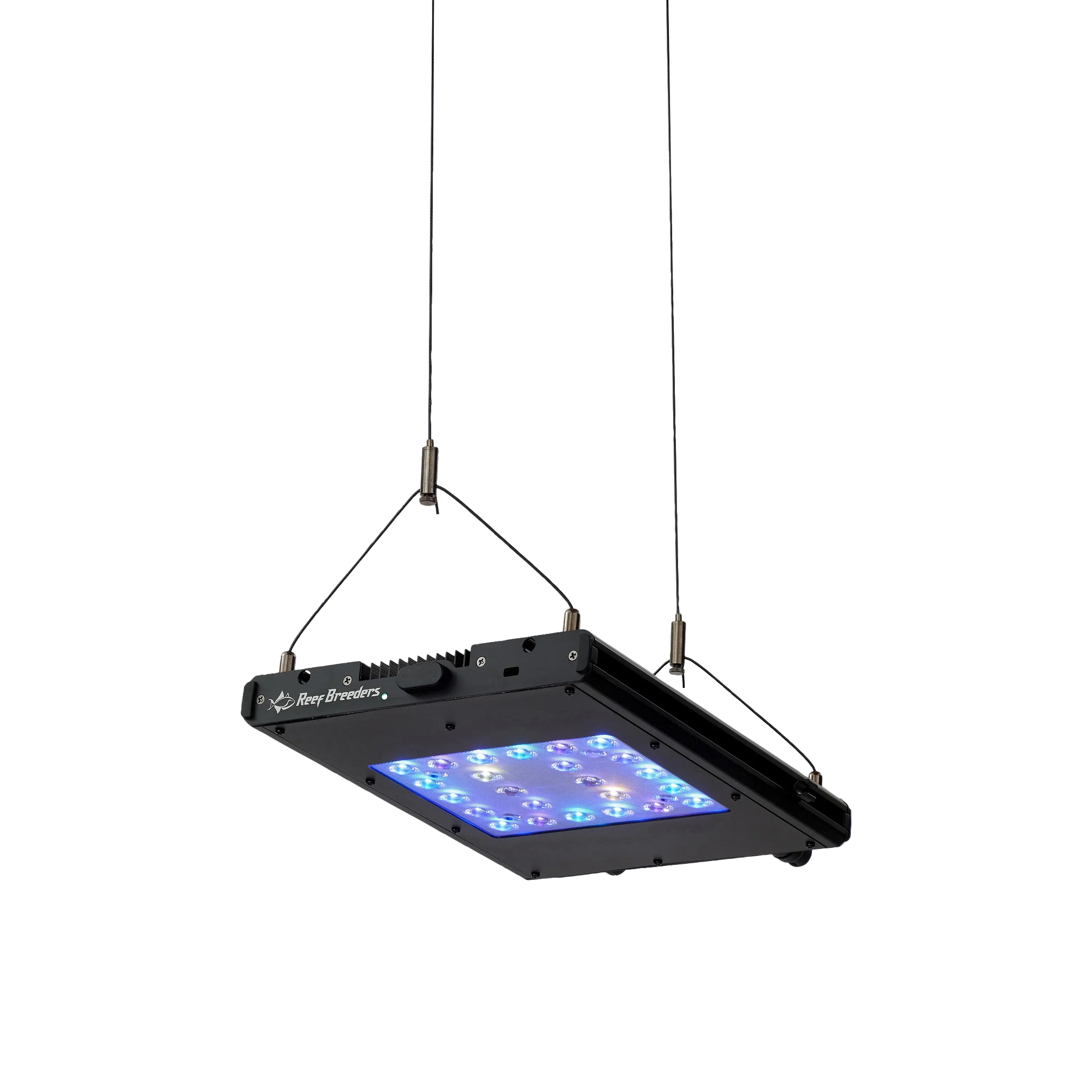

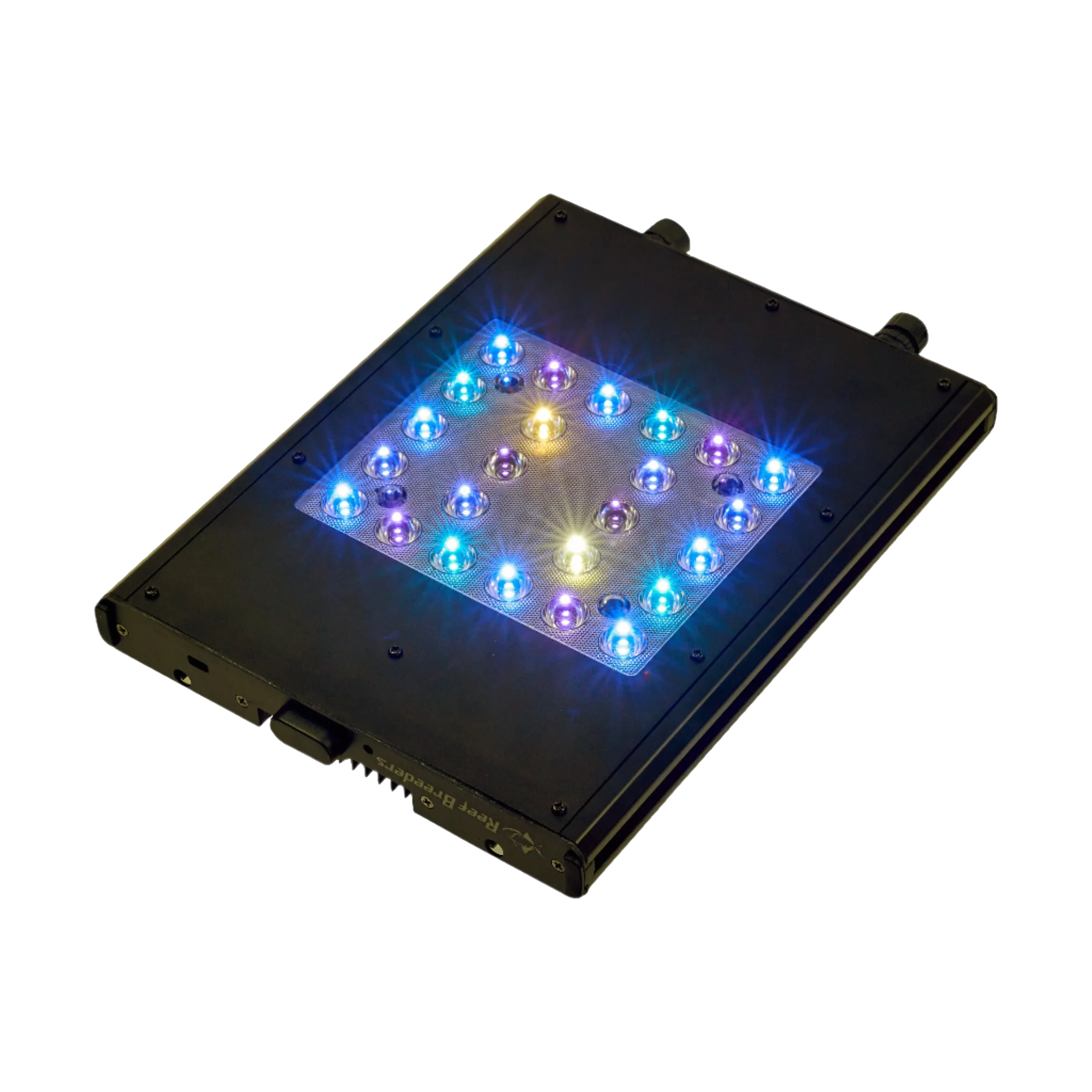

Meridian 11

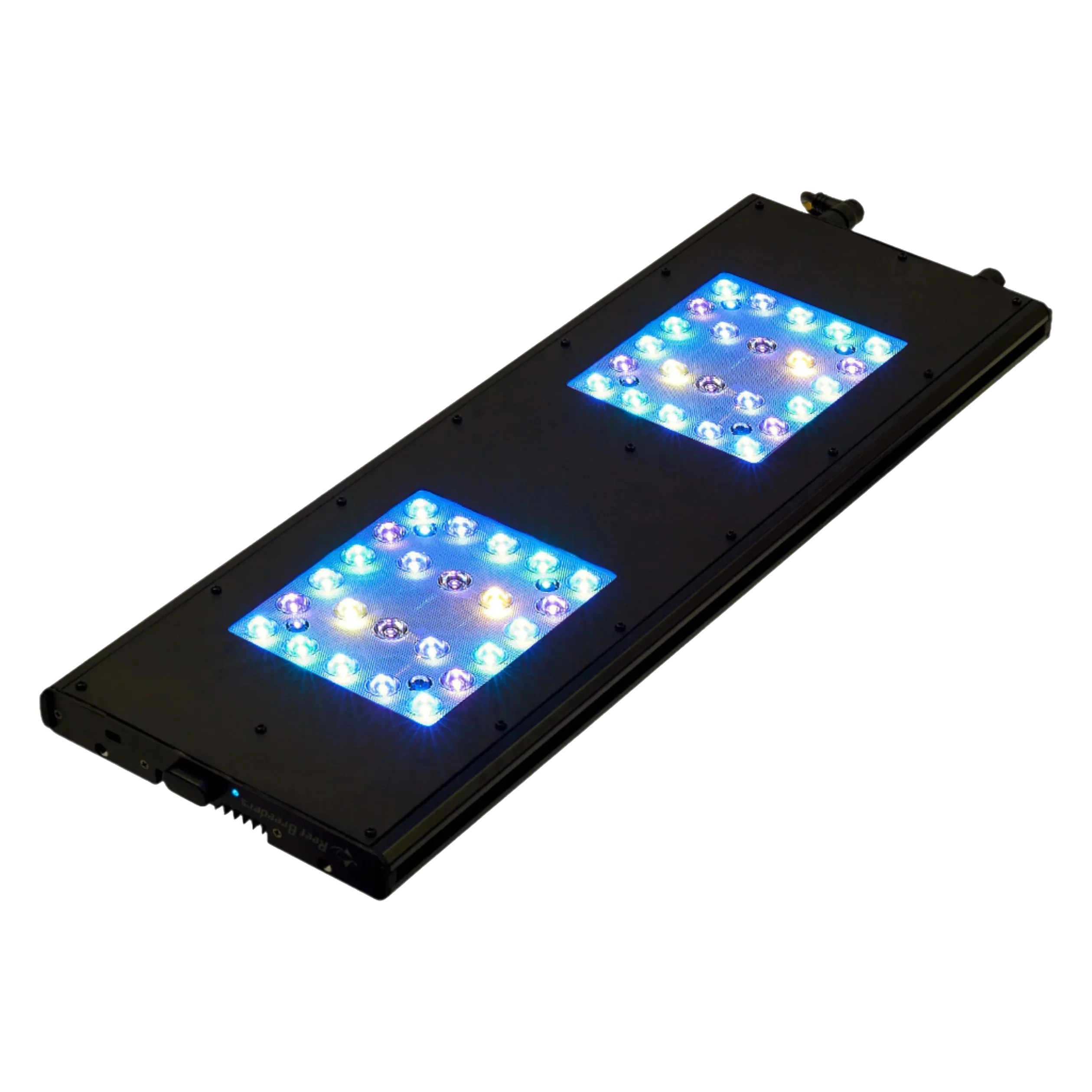

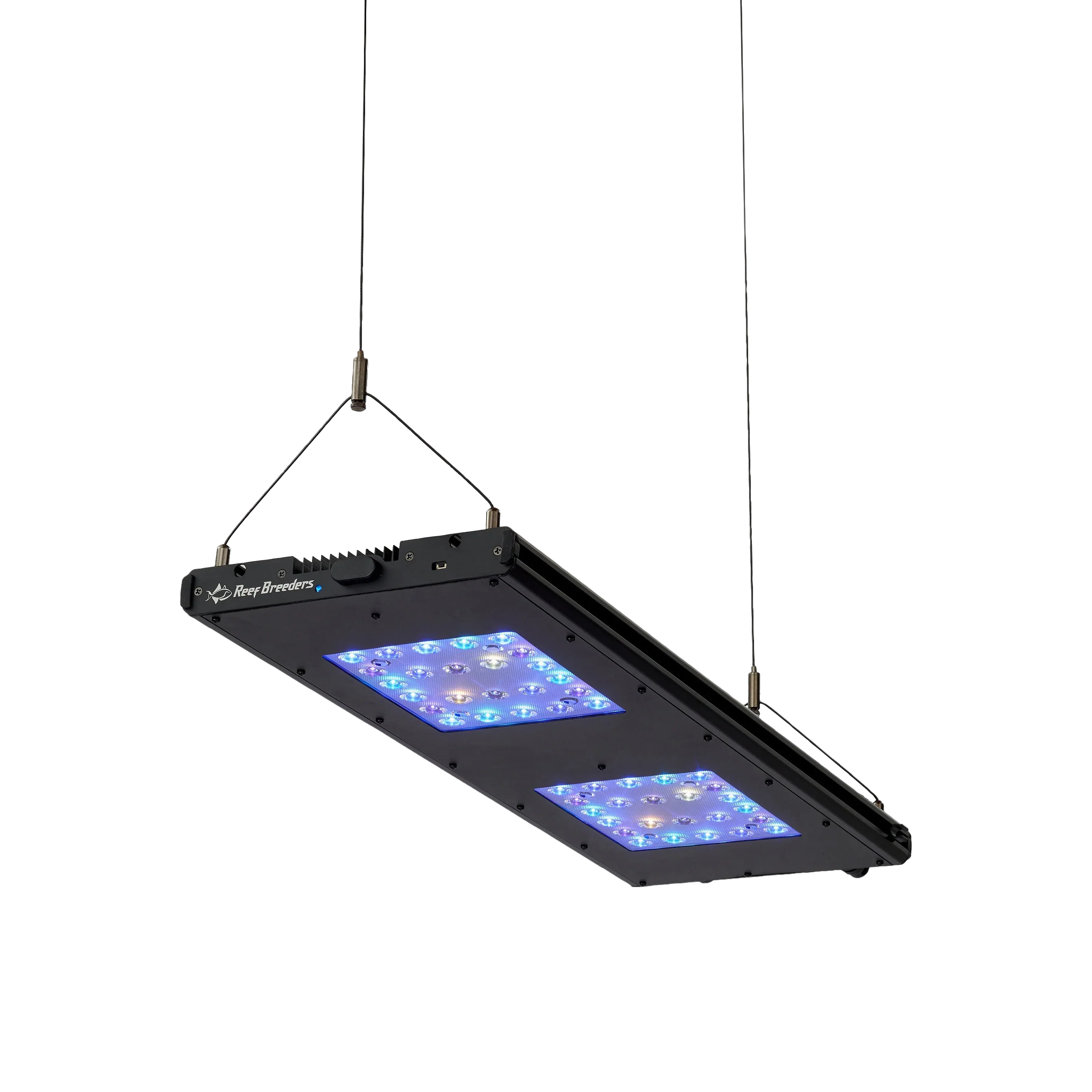

Meridian 24

Edge 63

Edge 45

Edge 24

Edge 12

Meridian Hanging Wires

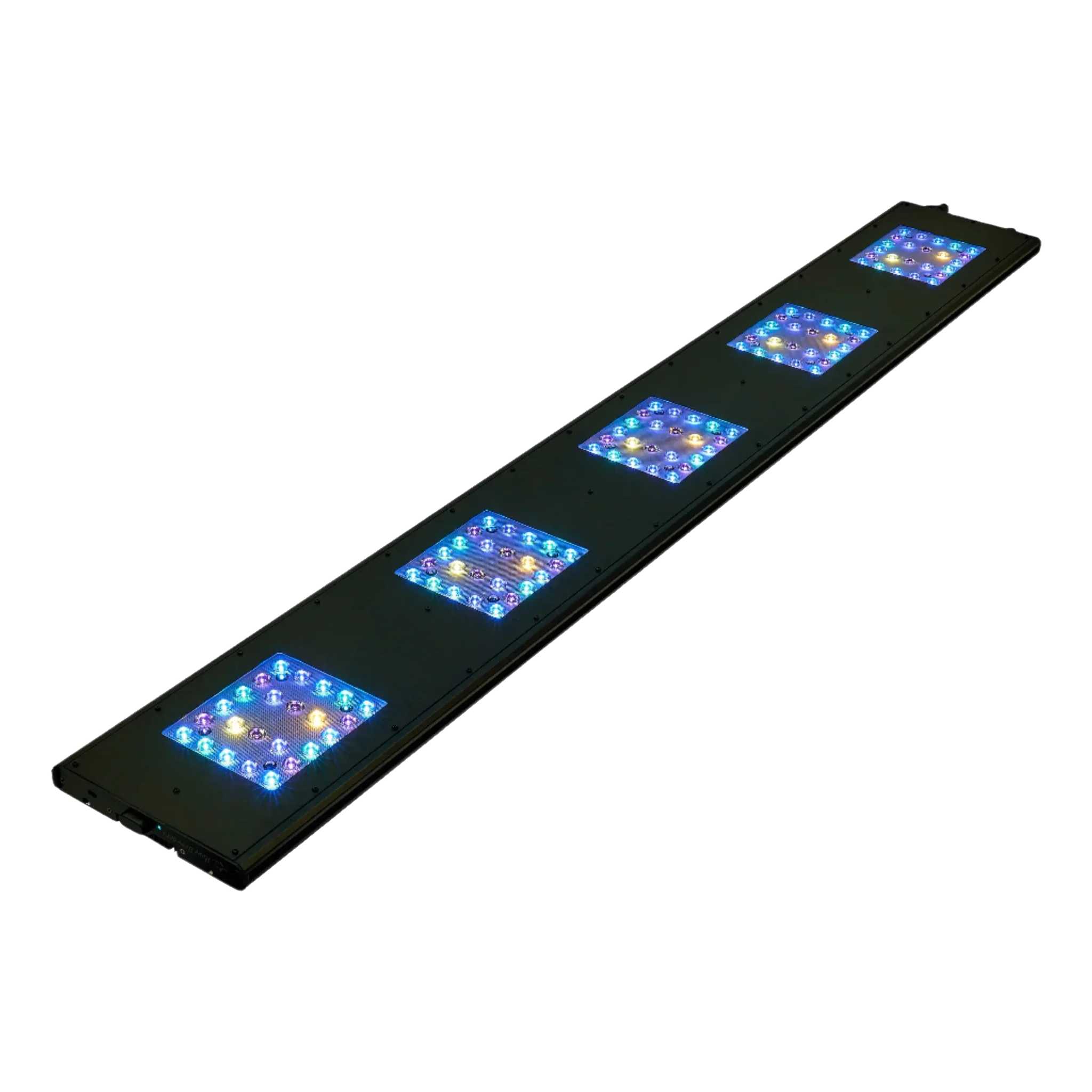

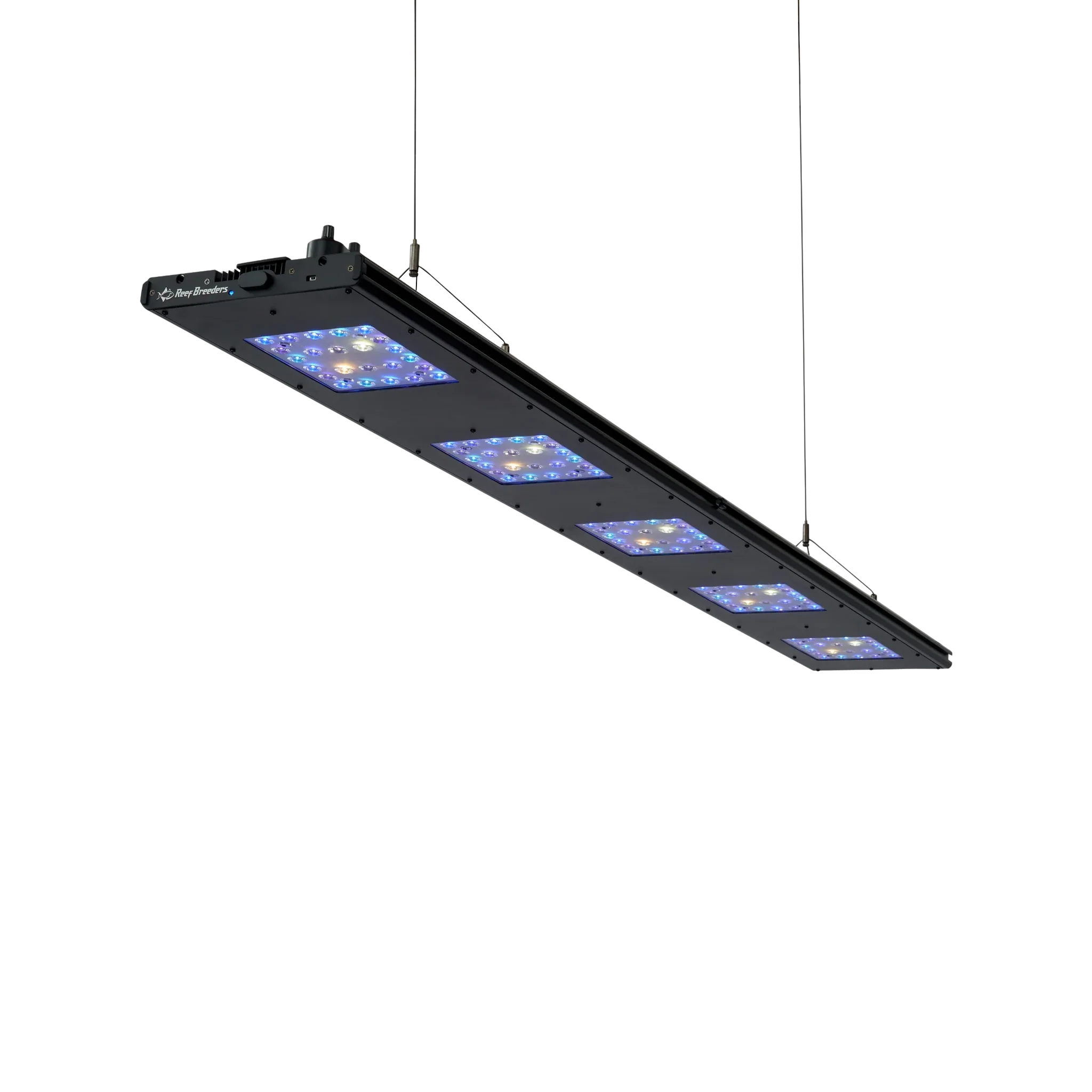

Meridian 63
